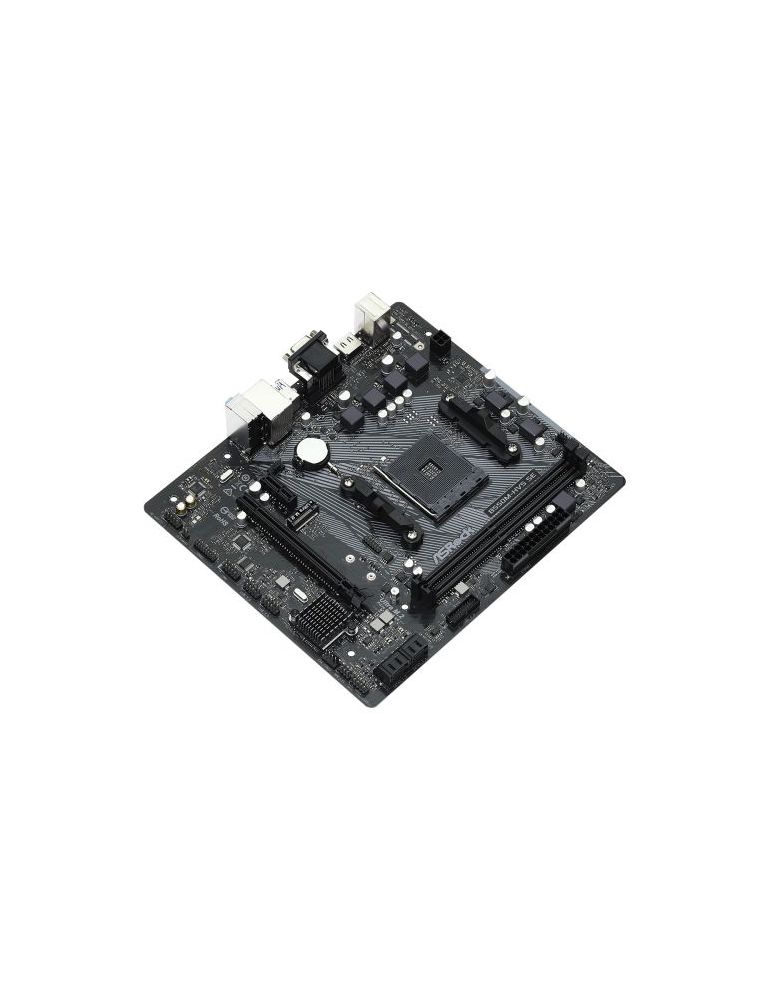

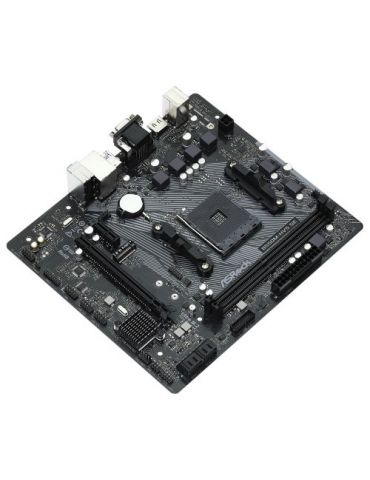

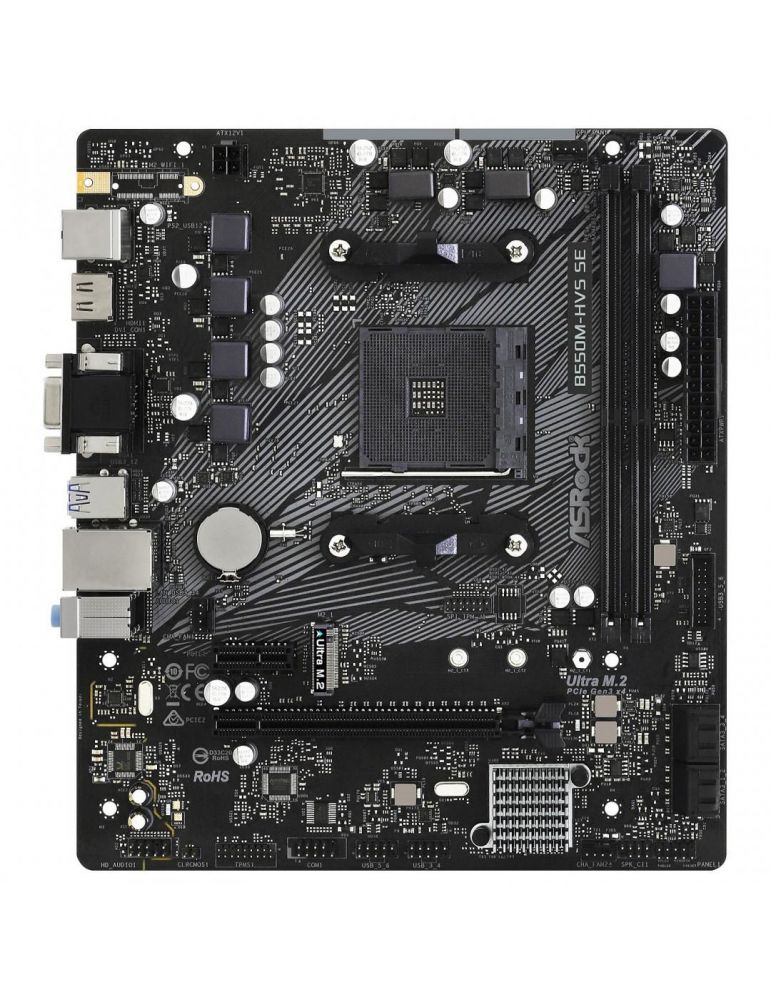

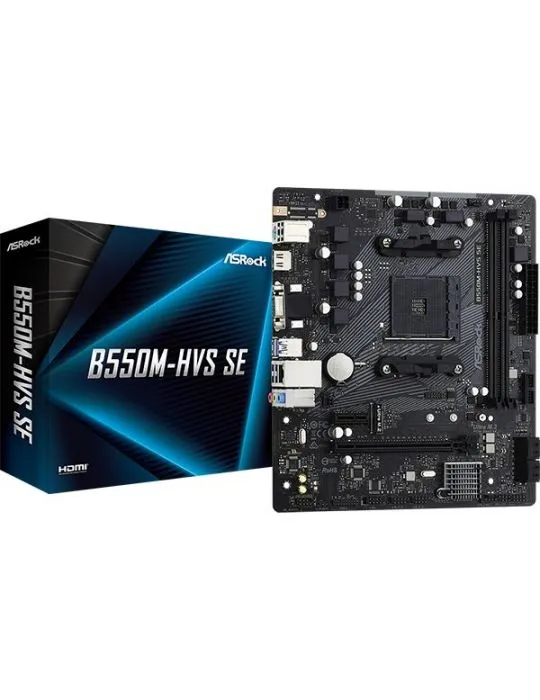

Unique Feature ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.

Unique Feature ASRock Super Alloy - Premium 50A Power Choke - Sapphire Black PCB - High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB Audio LAN Ports) ASRock Live Update & APP Shop CPU - Supports AMD AM4 Socket Ryzen™ 3000 3000 G-Series 4000 G-Series 5000 and 5000 G-Series Desktop Processors* - 6 Power Phase design *Not compatible with AMD Athlon™ Processors. Chipset - AMD PRO565 Memory - Dual Channel DDR4 Memory Technology - 2 x DDR4 DIMM Slots BIOS - 128Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - CPU CPU VDDCR_SOC DRAM VDDP Voltage Multi-adjustment Graphics - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU** Actual support may vary by CPU - DirectX 12 Pixel Shader 5.0 - Shared memory default 2GB. Max Shared memory supports up to 16GB.* - Dual graphics output: support D-Sub and HDMI ports by independent display controllers - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync Deep Color (12bpc) xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required) - Supports HDR (High Dynamic Range) with HDMI 2.1 - Supports HDCP 2.3 with HDMI 2.1 Port* Picasso supports HDCP 2.2 with HDMI 2.0 Port - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port - Supports Microsoft® PlayReady *The Max shared memory 16GB requires 32GB system memory installed. Audio - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) - Supports Surge Protection LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111H - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE Slots CPU: - 1 x PCIe 4.0 x16 Slot (PCIE2) supports x16 mode* - 1 x PCIe 3.0 x1 Slot (PCIE1) *Supports NVMe SSD as boot disks Chipset: Storage CPU: - 1 x Ultra M.2 Socket (M2_1 Key M) supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* Chipset: - 4 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit * RAID - Supports RAID 0 RAID 1 and RAID 10 for SATA storage devices USB - 1 x USB 3.2 Gen1 Type-C (Rear) - 5 x USB 3.2 Gen1 Type-A (3 Rear 2 Front) - 6 x USB 2.0 (2 Rear 4 Front) * All USB ports support ESD Protection Connector - 1 x SPI TPM Header - 1 x COM Port Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin)* - 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)** - 1 x 24 pin ATX Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power. CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use. Rear Panel I/O - 1 x PS/2 Mouse/Keyboard Port - 1 x D-Sub Port - 1 x HDMI Port - 2 x USB 2.0 Ports (Supports ESD Protection) - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone Software and UEFI Software - ASRock Motherboard Utility (A-Tuning) - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Accessories - 1 x I/O Shield - 1 x User Manual - 2 x SATA Data Cables - 1 x Screw for M.2 Socket Hardware Monitor - Temperature Sensing: CPU Chassis - Fan Tachometer: CPU Chassis Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU Chassis Fans - Fan Multi-Speed Control: CPU Chassis Fans - CASE OPEN detection - Voltage monitoring: +12V +5V +3.3V CPU Vcore Form Factor - Micro ATX Form Factor: 9.0-in x 7.9-in 23.0 cm x 20.1 cm - Solid Capacitor design OS - Microsoft® Windows® 10 64-bit / 11 64-bit Certifications - FCC CE - ErP/EuP ready (ErP/EuP ready power supply is required)
